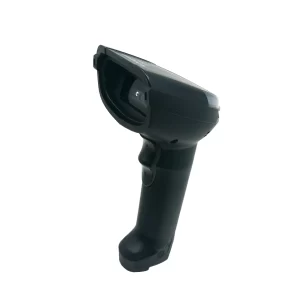

Unitech MS852B SR 2D Wireless Imager Scanner

Features

•  Lightweight design: Only 147g without cable

•  Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes

•  Long lifecycle trigger design: Up to 10,000,000 times.

•  Auto switching function between trigger mode and presentation mode with its stand

•  Ultra-rugged design: IP42 and 2.1m drop spec

•  Louder beeper and brighter LED indicators for easily recognizing feedbacks

• Optical & Performance
• Sensor
• CMOS sensor with 1280 x 960 pixels, rolling shutter
• Aiming Element
• 610nm, Green LED
• Illumination
• 1 warm white LED
• Skew Angle
• ±60°
• Pitch Angle Sensor
• ±60°
• Roll Angle
• 0 – 360°
• Optical Resolution
• 5.0 mil (Code 39), 6.6 mil (PDF417)
• Printing Contrast Scale
• Minimum 20%
• Depth of Field
• (DOF PCS=80%)
• SYMBOLOGY / X-DIM TYPICAL RANGE* Near │ Far
• 5 mil Code 39 │ 2.4 in / 6.1 cm │ 9.5 in / 24.1 cm
• 5 mil Code 128 │ 2.8 in / 7.1 cm │ 9.0 in / 22.9 cm
• 6.67 mil PDF417 │ 2.4 in / 6.1 cm │ 8.0 in / 20.3 cm
• 10 mil Data Matrix │ 2.9 in / 7.4 cm │ 8.5 in / 21.6 cm
• 100% UPC │ 1.8 in / 4.6 cm │ 19.5 in / 49.5 cm
• 15 mil QR │ 1.2 in / 3.0 cm │ 11.5 in / 29.2 cm
• 20 mil QR Code │ 1.5 in / 3.8 cm │ 11.5 in / 29.2 cm
• Communication
• Radio
• Corded
• Host Interface supported
• USB / RS232
• Mechanical
• Dimension
• 87.8 L x 71.6 W x 177.7 H (mm)
• Weight
• 147g without cable
• Trigger Switch Life
• 10 million times
• Symbologies
• 1D Barcodes
• UPC/EAN/JAN, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5 (ITF), Discrete 2 of 5 (DTF), Codabar
• (NW – 7), MSI, Chinese 2 of 5, Matrix 2 of 5, Inverse 1D, GS1 DataBar, Composite Codes
• 2D Barcodes
• PDF417, MicroPDF417, Code 128, Data Matrix, GS1 Data Matrix, Data Matrix Inverse, Decode Data Matrix,
• Maxicode 294, QR Code 293, GS1 QR Code, Micro QR Code, Linked QR Code, Aztec, Aztec Inverse, Han Xin
• Code, Han Xin Inverse, Grid Matrix, Grid Matrix Inverse, Grid Matrix Mirror, Macro PDF
• Postal Codes
• Australia Post, Australia Post Format, UK Postal, Japan Postal, Netherlands KIX Post, GS1 Composite, Korea
• Post, US Postnet, US Planet, Transmit US Postal Check Digit Transmit UK Postal Check Digit, USPS
• 4CB/One Code/Intelligent Mail, UPU FICS Postal, Mailmark
• Electrical
• Operation Voltage
• DC 5V +/- 10%
• Current Consumption
• Operating: 235mA
• Standby: 60mA
• Indicator
• Buzzer, LED
• Environmental
• ESD Protection
• Functional after 8K Contact and 15K Air
• Mechanical Shock
• 2.1M onto concrete (scanner only)
• Operating Temperature
• -10°C to 50°C (14°F to 122°F)
• Storage Temperature
• -40°C to +70°C (-40°F to +158°F)
• Relative Humidity
• 95% non-condensing
• IP Rating
• IP42
